814 Repair Manual — Volume I
/
Body / Vehicle dimensions / Saloon
Citroën Repair Manual N°814, Volume I
SECTION OVERVIEW

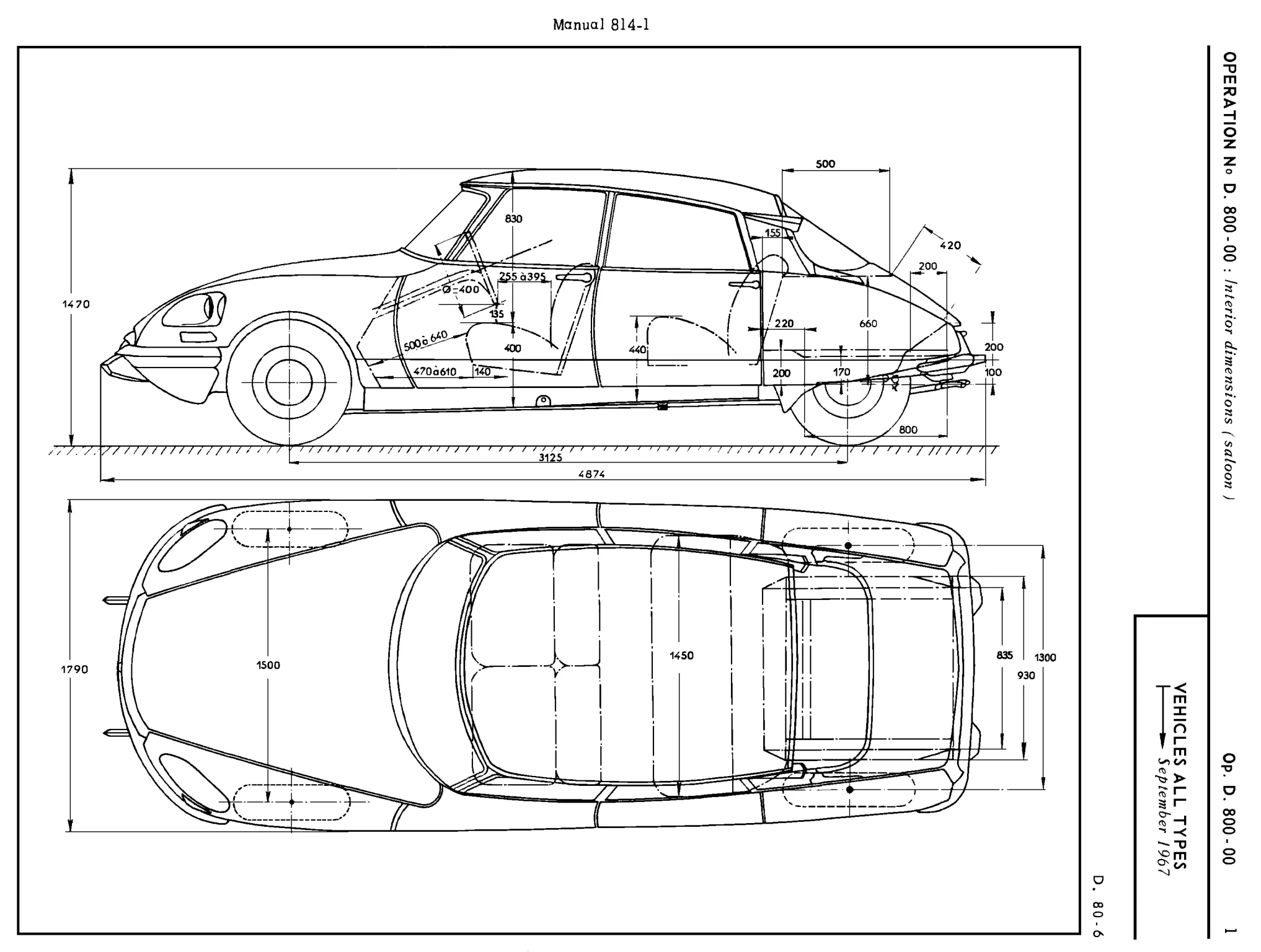

Body / Vehicle dimensions / Saloon
