Citroën Registry
814 Repair Manual — Volume I — Page 276
Literature
Home
Home
/
Literature
/
814 Repair Manual — Volume I
/

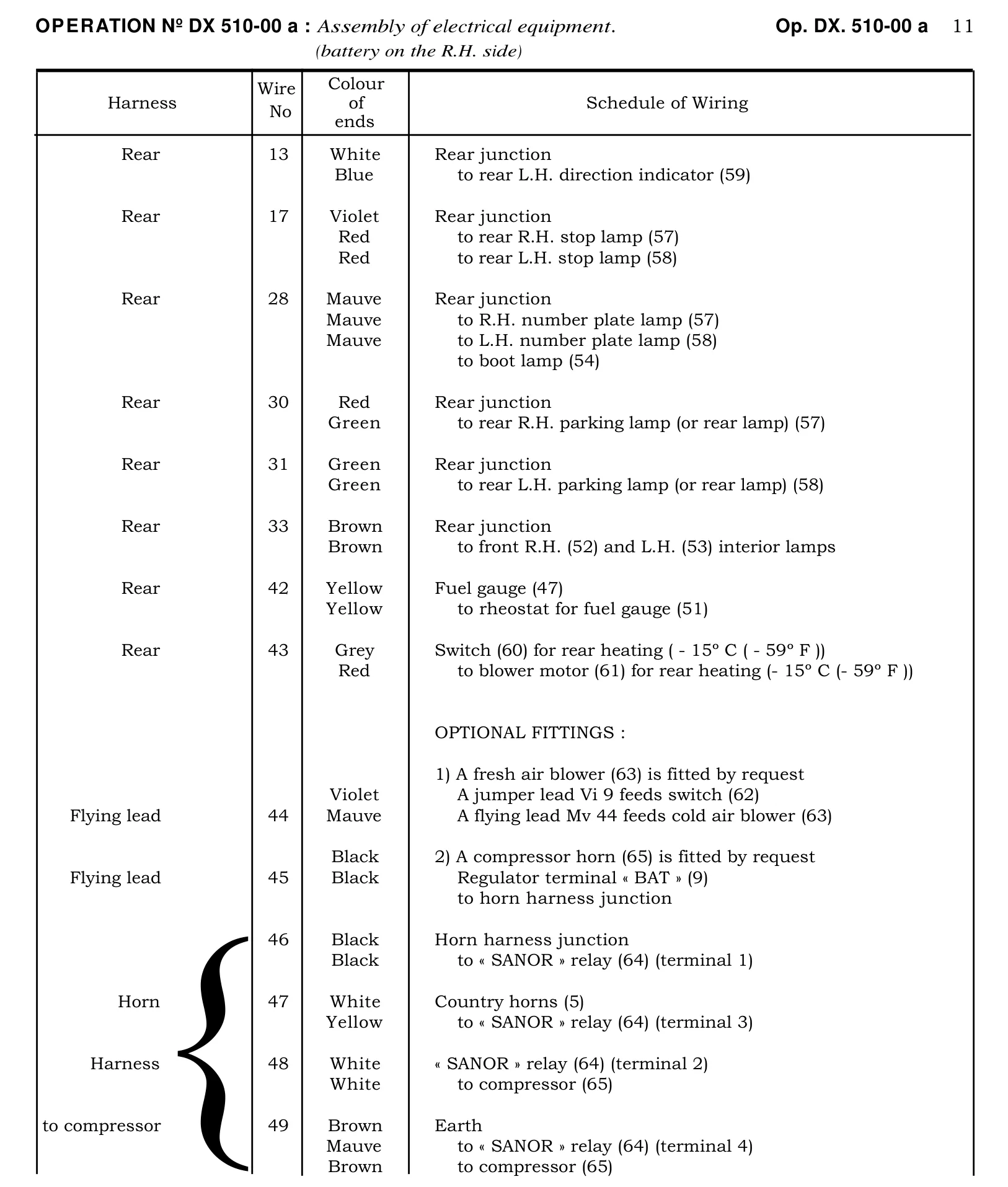

Schedule of wiring
Citroën Repair Manual N°814, Volume I
SECTION OVERVIEW
Schedule of wiring
