Citroën Repair Manual N°814, Volume I
SECTION OVERVIEW

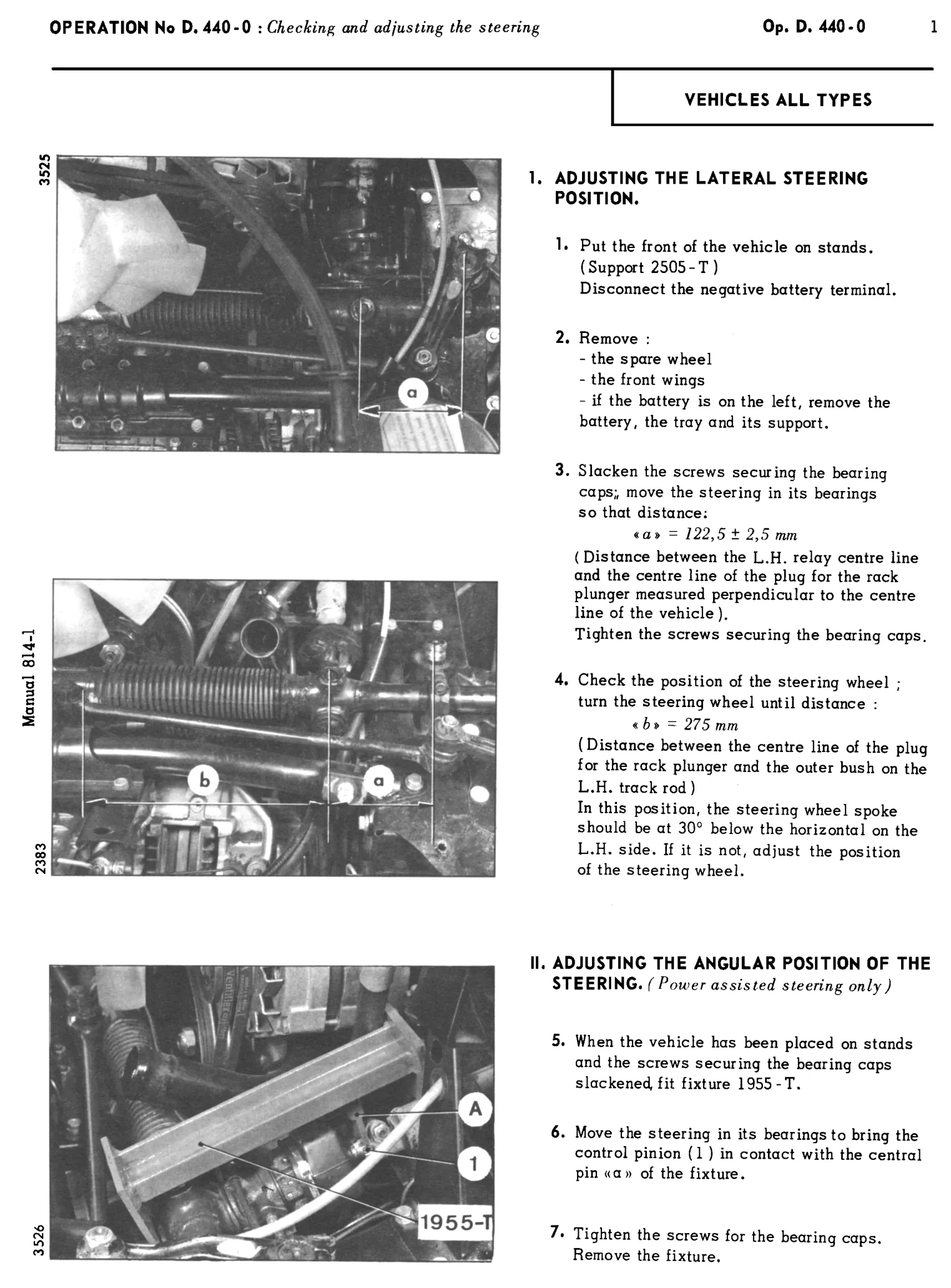

Adjusting lateral and angular position of the steering

Adjusting lateral and angular position of the steering, page 233 of 454 — 814 Repair Manual — Volume I
REPRESENTATIVE EXCERPT — FOR REFERENCE ONLY (from p.234)

10. There must be a toe-in of between 2 and 4 mm. If not adjust the track-rod sleeve (1 ) first raising the front of the vehicle. Loosen the screws in the clamps of the sleeve Work by fractions of a turn(1/4 of a turn corresponds to a variation in the alignment of 1 mm). Check the alignment again; tighten the
