Part Descriptions on This Page (English)

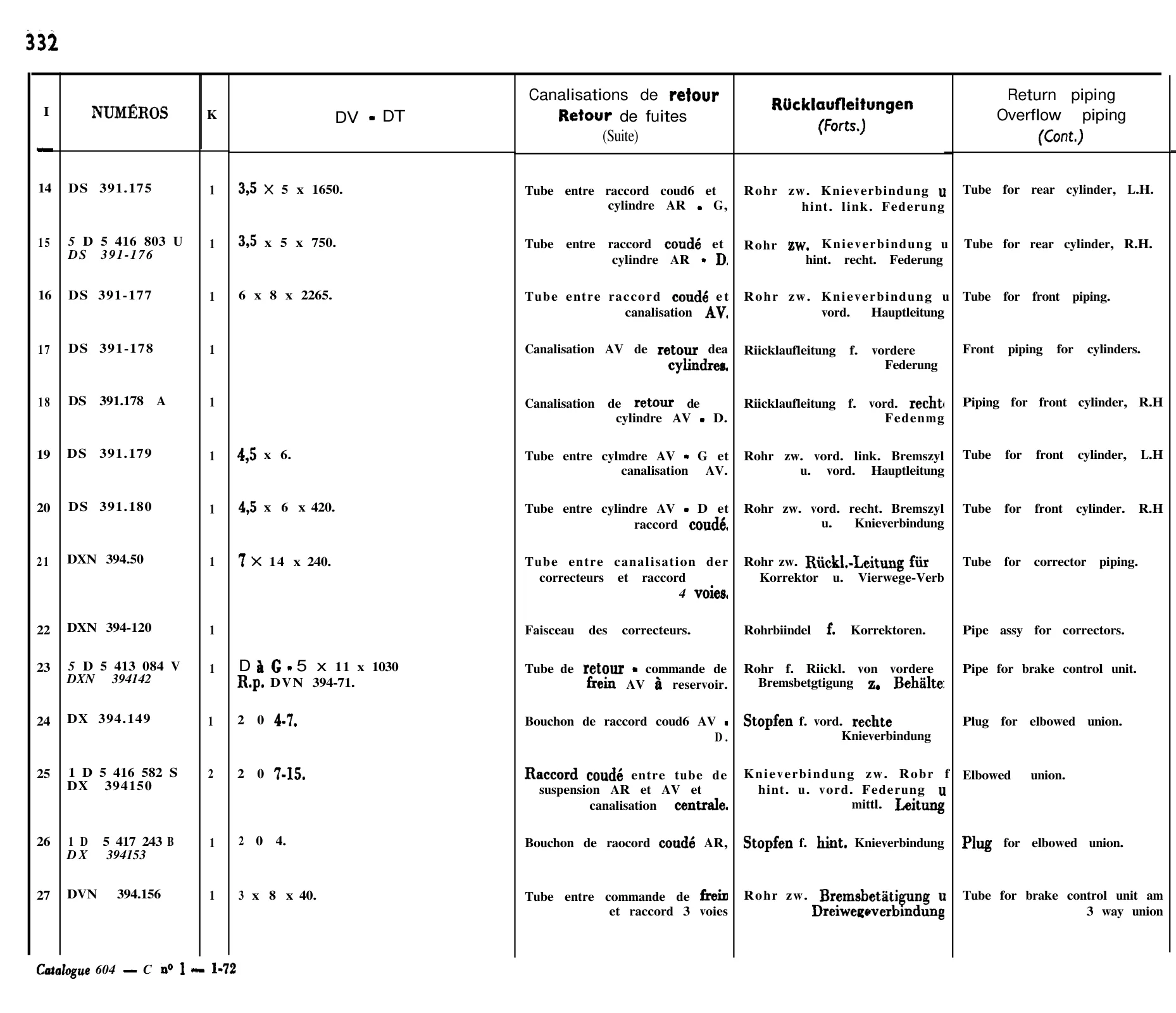

Return piping Overflow piping (Cont.) | for rear cylinder, L.H. | for rear cylinder, R.H. | for front piping. | piping for cylinders. | for front cylinder, R.H | for front cylinder, L.H | for front cylinder. R.H | for corrector piping. | assy for correctors. | for brake control unit. | for elbowed union. | union. | for elbowed union. | for brake control unit am 3 way union
