604 Parts Catalogue — Volume I — Page 189
Literature
Home
Citroën Parts Catalogue N°604, Volume I, 1971
SECTION OVERVIEW

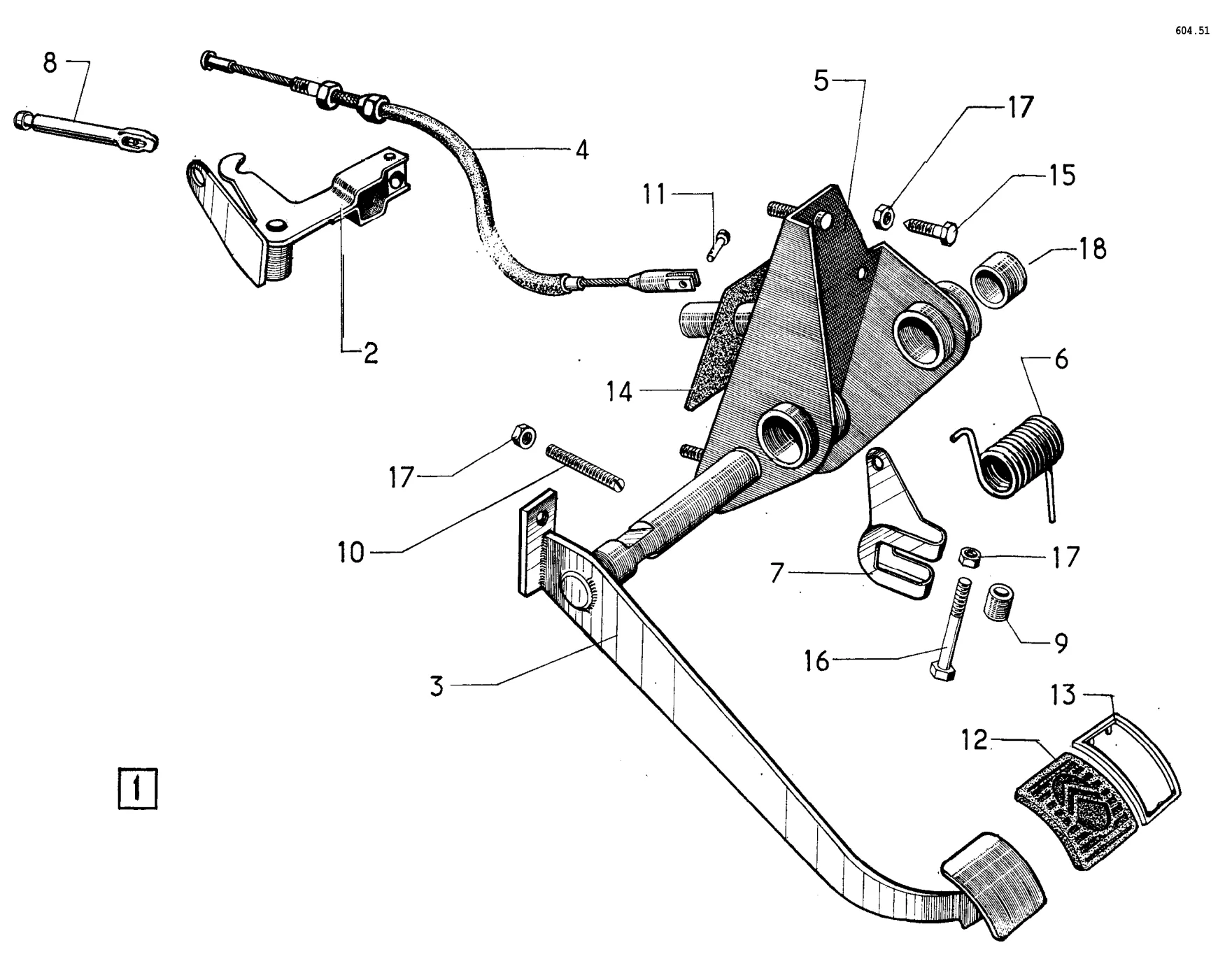

Pedal gear
